Configuring Interfaces

Topics:

Configuring a Static Interface

For general information on interfaces, see Network > Interfaces.

Static means that you assign a fixed IP address to the interface.

1

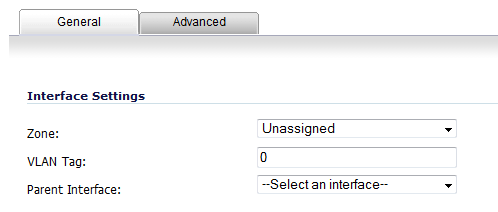

Click on the Configure icon in the Configure column for the Interface you want to configure. The Edit Interface dialog is displayed.

3

Select Static from the IP Assignment menu.

To allow access to the WAN interface for management from another zone on the same appliance, access rules must be created. See Allowing WAN Primary IP Access from the LAN Zone for more information.

Configuring Advanced Settings for a Static Interface

To configure advanced settings for a static interface, follow these steps.

1

In the Edit Interface dialog box, click the Advanced tab.

2

For Link Speed, if Auto Negotiate is selected by default, you can change it to a specific link speed and duplex. For those that do, leaving it as Auto Negotiate causes the connected devices to automatically negotiate the speed and duplex mode of the Ethernet connection. If you want to specify the forced Ethernet speed and duplex, select one of the following options from the Link Speed menu:

3

You can choose to override the UseDefault MAC Address for the Interface by selecting Override Default MAC Address and entering the MAC address in the field.

4

Select the Shutdown Port checkbox to temporarily take this interface offline for maintenance or other reasons. If connected, the link will go down. Clear the checkbox to activate the interface and allow the link to come back up.

6

Select the Enable Multicast Support checkbox to allow multicast reception on this interface.

7

Select the Enable 802.1p tagging checkbox to tag information passing through this interface with 802.1p priority information for Quality of Service (QoS) management. Packets sent through this interface are tagged with VLAN id=0 and carry 802.1p priority information. In order to make use of this priority information, devices connected to this interface should support priority frames. QoS management is controlled by access rules on the Firewall > Access Rules page. For information on QoS and bandwidth management, see Firewall Settings > QoS Mapping.

11

Interface MTU - Specifies the largest packet size that the interface can forward without fragmenting the packet. Enter the size of the packets that the port will receive and transmit:



Configuring Routed Mode

Routed Mode provides an alternative for NAT for routing traffic between separate public IP address ranges. Consider the following topology where the firewall is routing traffic across two public IP address ranges:

Figure 7. Routed mode configuration

By enabling Routed Mode on the interface for the 172.16.6.0 network, NAT translations will be automatically disabled for the interface, and all inbound and outbound traffic will be routed to the WAN interface configured for the 10.50.26.0 network.

To configure Routed Mode, perform the following steps:

2

Click on the Configure icon for the appropriate interface. The Edit Interface window displays.

4

Under the Expert Mode Settings heading, select the Use Routed Mode - Add NAT Policy to prevent outbound\inbound translation checkbox to enable Routed Mode for the interface.

5

In the NAT Policy outbound/inbound interface drop-down lis, select the WAN interface that is to be used to route traffic for the interface.

The firewall then creates “no-NAT” policies for both the configured interface and the selected WAN interface. These policies override any more general M21 NAT policies that may be configured for the interfaces.

Enabling Bandwidth Management

Bandwidth Management (BWM) allows you to guarantee minimum bandwidth and prioritize traffic. BWM is enabled in the Firewall Settings > BWM page. By controlling the amount of bandwidth to an application or user, you can prevent a small number of applications or users from consuming all available bandwidth. Balancing the bandwidth allocated to different network traffic and then assigning priorities to traffic improves network performance.

Three types of bandwidth management can be enabled on the Firewall > BWM page:

Advanced—Enables you to configure maximum egress and ingress bandwidth limitations per interface, by configuring bandwidth objects, access rules, and application policies.

Global—Allows you to enable BWM settings globally and apply them to any interfaces. Global BWM is the default BWM setting.

For information on configuring bandwidth management, see Firewall Settings > BWM.

SonicOS can apply bandwidth management to both egress (outbound) and ingress (inbound) traffic on any interfaces. Outbound bandwidth management is done using Class Based Queuing. Inbound Bandwidth Management is done by implementing an ACK delay algorithm that uses TCP’s intrinsic behavior to control the traffic.

Class Based Queuing (CBQ) provides guaranteed and maximum bandwidth Quality of Service (QoS) for the firewall. Every packet destined to the interface is queued in the corresponding priority queue. The scheduler then dequeues the packets and transmits them on the link depending on the guaranteed bandwidth for the flow and the available link bandwidth.

Enabling BWM

To enable or disable ingress and egress BWM:

1

Click on the Add Interface button or the Edit icon of an interface. The Add/Edit Interface dialog displays.

Configuring Interfaces in Transparent IP Mode (Splice L3 Subnet)

Transparent IP Mode enables the Dell SonicWALL Security Appliance to bridge the WAN subnet onto an internal interface.

To configure an interface for transparent mode, complete the following steps:

1

Click on the Configure icon in the Configure column for Unassigned Interface you want to configure. The Edit Interface dialog box is displayed.

3

Select Transparent IP Mode(Splice L3 Subnet) from the IP Assignment menu.

4

From the Transparent Range menu, select an address object that contains the range of IP addresses you want to have access through this interface. The address range must be within an internal zone, such as LAN, DMZ, or another trusted zone matching the zone used for the internal transparent interface. If you do not have an address object configured that meets your needs:

a

In the Transparent Range menu, select Create New Address Object.

b

In the Add Address Object window, enter a name for the address range. For Zone Assignment, select an internal zone, such as LAN, DMZ, or another trusted zone. The range must not include the LAN interface (X0) IP address.

Host if you want only one network device to connect to this interface.

Range to specify a range of IP addresses by entering beginning and ending value of the range.

Network to specify a subnet by entering the beginning value and the subnet mask. The subnet must be within the WAN address range and cannot include the WAN interface IP address.

e

Click OK to create the address object and return to the Edit Interface dialog box.

See Network > Address Objects for more information.

To allow access to the WAN interface for management from another zone on the same appliance, access rules must be created. See Allowing WAN Primary IP Access from the LAN Zone for more information.

Configuring Advanced Settings for a Transparent IP Mode Interface

1

In the Edit Interface dialog box, click the Advanced tab.

2

For Link Speed, if Auto Negotiate is selected by default, you can change it to a specific link speed and duplex. For those that do, leaving it as Auto Negotiate causes the connected devices to automatically negotiate the speed and duplex mode of the Ethernet connection. If you want to specify the forced Ethernet speed and duplex, select one of the following options from the Link Speed menu:

3

You can choose to override the UseDefault MAC Address for the Interface by selecting Override Default MAC Address and entering the MAC address in the field.

4

Select the Shutdown Port checkbox to temporarily take this interface offline for maintenance or other reasons. If connected, the link will go down. Clear the checkbox to activate the interface and allow the link to come back up.

6

Select the Enable Multicast Support checkbox to allow multicast reception on this interface.

7

Select the Enable 802.1p tagging checkbox to tag information passing through this interface with 802.1p priority information for Quality of Service (QoS) management. Packets sent through this interface are tagged with VLAN id=0 and carry 802.1p priority information. In order to make use of this priority information, devices connected to this interface should support priority frames. QoS management is controlled by access rules on the Firewall > Access Rules page. For information on QoS and bandwidth management, see Firewall Settings > QoS Mapping.

9

Select the Enable Gratuitous ARP Forwarding Towards WAN checkbox to forward gratuitous ARP packets received on this interface towards the WAN, using the hardware MAC address of the WAN interface as the source MAC address.

10

Select the Enable Automatic Gratuitous ARP Generation Towards WAN

Earlier I stumbled across a hidden set of features and settings in a TZ215 by going to /diag.html and figured Id share this with everyone in case you were unaware of it as I was.  It appears to be available in all of the TZ series devices, the SOHO, and likely others.  On the main page you will see the following disclaimer.

Under Internal Settings there are quite a few settings and options.  Some more useful than others.  For me the option I needed was “Disable Port Scan Detection” under the Firewall section.  Below is a rough list of some of the options.  Keep in mind these options are undocumented, unsupported, and it is suggested to only make changes to these values if instructed by Dell Technical Support.  Enjoy!



Trace Log:

  • Trace Log: [Current \/]
  • [Download Trace Log]
  • [Clear Trace Log]

ARP Settings:

  • Enable ARP bridging
  • Enable open ARP behavior (WARNING: Insecure!!)
  • Enable Source IP Address validation for being directly connected
  • Only allow ARP entries with unicast addresses
  • Limit ARPS of non-responsive IPs
  • Bypass ARP processing on L2 bridge interfaces
  • Enable Gratuitous ARP Compatibility Mode
  • Never broadcast more than 100 Gratuitous ARPs in any 60 second period.
  • Periodically broadcast system ARPs every 60 minutes.
  • Ignore ARPs with primary-gateway’s MAC received on other interfaces
  • [Send System ARPs…]

Routing and Network Settings:

  • Flush flows on alternate path when normal route path is enabled (affects existing connections)
  • Update route version when route is enabled/disabled (affects existing connections)
  • Enable TCP packet option tagging
  • Fix/ignore malformed TCP headers
  • Enable TCP sequence number randomization
  • Perform SYN validation when not operating in strict TCP compliance mode
  • [Clear OSPF Process]
  • Clear DF (Don’t Fragment) Bit
  • Allow first fragment of size lesser than 68 bytes
  • Enable ICMP Redirect on DMZ zone
  • Disable learning-bridge filtering on L2 bridge interfaces
  • Never add static default routes to the NSM route database
  • Enable stack traffic sending by DP core

DHCP Settings:

  • Enable DHCP Server Network Pre-Discovery
  • DHCP Server Conflict Detect Period: 300 Seconds
  • Number of DHCP resources to discover: 10
  • Timeout for conflicted resource to be rechecked: 1800 Seconds
  • Timeout for available resource to be rechecked: 600 Seconds
  • [Save DHCP Leases To Flash]
  • Send DHCPNAK if the ‘requested IP address’ is on the wrong network
  • Time interval of DHCP lease database to be refreshed: 600 Seconds
  • Number of DHCP leases in database to be refreshed: 10
  • Aggressively recycle expired DHCP leases in advance

VoIP Settings:

  • Maximum ‘public’ VoIP Endpoints: 2048
  • H.323 Force Odd Media Control Port
  • Auto-add SIP endpoints
  • Transform SIP URIs to have an explicit port
  • Permit B2BUA to bind established calls together
  • SIP connection refresh interval (seconds): 40
  • Flush active media for SIP INVITEs without SDP
  • Flush unused media for SIP INVITEs without SDP
  • [Reset SIP Databases]

VPN Settings:

  • Do not adjust TCP MSS option for VPN traffic
  • Use interoperable IKE DH exchange
  • Fragment VPN packets after applying ESP
  • Use SPI/CPI parameter index for IPsec/IPcomp passthru connections
  • Accept Reserved ID Type in Quick Mode.
  • Trust Built-in CA certificates for IKE authentication and Local certificate import.
  • Enable Compatibility with Android 4.0 Client.
  • Encryption Settings:
  • Enable Hardware Encryption
  • Disable SSLv3
  • Disable TLSv1

DP stack Settings:

  • Enable DP stack processing

Firewall Settings:

  • FTP bounce attack protection
  • Allow orphan data connections
  • Allow TCP/UDP packet with source port being zero to pass through firewall
  • FTP protocol anomaly attack protection
  • IP Spoof checking
  • Disable Port Scan Detection
  • Trace connections to TCP port: 0
  • Include TCP data connections in traces
  • Enable Tracking Bandwidth Usage for default traffic
  • Enable to bandwidth manage WAN to WAN traffic
  • Decrease connection count immediately after TCP connection close
  • Protect against TCP State Manipulation DoS
  • Disable CSRF Token Validation
  • Disable Secure Session ID Cookie
  • [Flush Connections]
  • Deschedule Packet Count:
  • Refresh sub-domains of wildcard FQDN address objects

Security Services Settings:

  • Apply IPS Signatures Bidirectionally
  • Enable IP fragment reassembly in DPI
  • Extra dev debug info
  • Disable TCP expected sequence adjustment in DPI
  • Disable App-Firewall SMTP CHUNKING modification
  • Disable Gateway AV POP3 Auto Deletion
  • Disable Gateway AV POP3 UIDL Rewriting
  • Disable Gateway AV SMB read/write ordering enforcement
  • Log Virus URI.
  • Do not apply signatures containing file offset qualifiers
  • that trigger on TCP Streams with unidentified protocols.
  • Minimum HTTP header length (0 to disable): 0
  • Enable incremental updates to IDP, GAV and SPY signature databases.
  • Enable enforcement of a limit on maximum allowed advertised TCP window with any DPI-based service enabled.
  • 256 Set a limit on maximum allowed advertised TCP window with any DPI-based service enabled (KBytes).
  • Disable signature database reload.
  • 1500 Threshold above which size limits are enforced on Regex Automaton.
  • 3000 Maximum allowed size for Regex Automaton.
  • Limit IPS CFT scan.
  • Enforce Host Tag Search for CFS
  • [Reset AV Info]
  • [Reset Client CF Enforcement Info]
  • [Reset Client CF Enforcement Cache]
  • [Reset Licenses & Security Services Info]
  • [Reset HTTP Clientless Notification Cache]
  • [Reset Cloud AV Cache]

DPI-SSL settings:

  • Rewritten certificate SN modifier:
  • Client spoofed certificate caching:
  • Remove TCP timestamp option:
  • Drop SSL packets when memory low:
  • Allow SSL without proxy when connection limit exceeded:
  • Disable Endpoint TCP Window Setup:
  • Disable Server Facing Session Reuse:
  • Block connections to sites with untrusted certificates:
  • 512 Max stream offset to check for SSL client-hello resemblance:
  • TCP window multiplier (N * 64k):
  • Override max proxied SSL connections:
  • Disable SSLv3 client connections in DPI-SSL:
  • SSL Version:
  • Cipher Methods

High Availability Settings:

  • Enable Network Monitor probing on Idle unit
  • HA Failover when Packet Pool is Low on Active Unit
  • Suppress Alarm on HA Transition to Active
  • Always restart HA backup for watchdog task
  • Send gratuitous ARP to DMZ or LAN on transparent mode while HA failover
  • Maximum number of gratuitous ARP of transparent mode per interface while HA failover: 256
  • Maximum number of gratuitous ARP while HA failover: 1
  • Send Syslog messages from both HA units with unique serial numbers

PPPOE Settings:

  • Allow LCP requests to PPPOE Server
  • Log LCP Echo Requests and Replies between client and server
  • Enable PPPoE End-Of-List Tag
  • PPPOE Netmask: 255.255.255.0

Dial-Up Settings:

  • Display dialup status on console
  • PPPDU Max Configuration Failures: 9
  • [Restart Dial-Up Devices]
  • One-Touch Configuration Helpers
  • [DPI and Stateful Firewall Security]
  • Preview applicable changes
  • [Stateful Firewall Security]
  • Preview applicable changes

Management Settings:

  • Use Standby Management SA
  • Allow SGMS to preempt a logged in administrator
  • Prioritize the following selected traffic types below to be highest and above all other traffic types:
  • ICMP SNMP HTTPS

User Authentication Settings:

  • Post authentication user redirect URL: [ ]
  • Log an audit trail of all SSO attempts in the event log
  • (X) in the event log
  • ( ) in memory to download as ssoAuthLog.wri, max. buffer size: 64 KBytes.
  • – When buffer is full: (X) stop ( ) wrap. Download ssoAuthLog.wri Download and reset ssoAuthLog.wri
  • For user IP addreses: [All \/]
  • Include SSO polling Include SSO bypass Include additional non-initiation of SSO
  • Try to negotiate SSO agent protocol to version: 5 (default protocol version is 5)
  • [Logout All users]
  • Diagnostics Settings:
  • Disable SonicSetup/Setup tool Server
  • Trace message level: [Warning \/]
  • For diagnostic testing purposes, auto-restart system every 60 minutes.
  • Secured www.mysonicwall.com crash analysis

Watchdog Settings:

  • Do not restart for watchdog task
  • Restart quickly after an exception
  • Restart when packet pool is low

IPHelper Settings:

  • Enable no source port matching for replies from DHCP servers.
  • Disable Reverse Path check for Source IP.
  • Disable ingress egress check.

Wireless Settings:

  • Wireless Advanced Settings
  • Set Local Bit for Virtual Access Point BSSID MAC Address
  • Allow same Virtual Access Point groups to be used for dual radios
  • Supported SonicPoint Type: [All \/]
  • SonicPoint-N System Self Maintenance: [Weekly (3:00AM Every Sunday) \/]
  • Legacy SonicPoint A/B/G and SonicPoint-G Only Management Enforcement
  • [Update All SonicPoint’s Firmware]
  • SonicPoint KeepAlive Enforcement
  • SonicPoint Provisioning Protocol TCP Window Size: 1400
  • Use Default TCP Window Size For SonicPointN Provisioning Protocol
  • SonicPointN Provisioning Protocol TCP MSS Setting:
  • (X) Use Default Value.
  • ( ) Customized TCP MSS: 1460 bytes.
  • Prefer SonicPointN 2.4GHz Auto Channel Selection to be 1, 6 and 11 only
  • SonicPointN SSH Management Enable
  • Enable SonicPoint (N) IP address retaining
  • SonicPointN Logging Enable
  • Erase SonicPoint Crash Log generated by previous firmware image when SonicPoint image is updated
  • SonicPoint-Ni/Ne Noise Sensitivity Level: (The higher noise sensitivity level should be selected when RF environment is getting noiser) [Medium \/]
  • SonicPointN Reboot When Noise Safe Mode Detected
  • Use SNAP packet between SonicPoint / SonicPointN and Gateway
  • Send Need Fragment ICMP packet to SonicPoint / SonicPointN client
  • Enable intra-WLAN Zone communication for bonjour packet
  • WLAN DHCP lease / ARP delivery success rate enhancement
  • Wireless Guest Services Redirect Interval: 15 Seconds
  • Legacy WiFiSec Enforcement support
  • Do not apply WiFi security enforcement on reply traffic from WLAN to any other zone
  • Enable WLAN traffic DP core processing capability
  • Enable intra-WLAN Zone communication for broadcast packet
  • Enable local wireless zone traffic to bypass gateway firewalling

Tooltip Settings:

  • Enable tooltip with no descriptions

Preferences Conversion:

  • Preference Processor Server: convert.global.sonicwall.com
  • Site Relative Directory: /popup
  • Enable checking when importing settings

Anti-Spam Service:

  • Disable SYN Flood Protection for Anti-Spam-related connections
  • Use GRID IP reputation check only
  • Disable GRID IP reputation checking for Outbound SMTP connections
  • Do NOT disable custom user email policies when Anti-spam is enabled
  • Allow Limited Admin users to configure Anti-Spam Service.
  • Bypass SHLO Check when Junk Store is unavailable (while Email Security is operational).
  • Do NOT verify incoming SHLO
  • Marked as replay if incoming SHLO time stamp is more than: 3600 secs
  • [Clear Statistics]
  • [Reset GRID Name Cache]
  • [Delete Policies and Objects]
  • CASS Cloud Service Address: [Resolve Automatically \/]

Email System Detection:

  • Enable Email System Detection

TZ Default Port Assignment:

Remote Assistance:

SSLVPN Settings:

  • NetExtender(for Windows) Version: [ ]
  • Hide Remote EPC feature

WAN Acceleration Settings:

  • Enable checking of connection responses by remote WAN Acceleration device
  • Temporarily bypass TCP Acceleration for failed proxied connections (minutes): 15
  • Temporarily bypass TCP Acceleration for short-lived proxied connections (minutes): 60
  • Skip TCP Acceleration for stateful control channels (but accelerate data channels)
  • Enable Transparent CIFS acceleration
  • Enable WXA Web Cache Redirection
  • [Zero debug stats]
  • [Show debug stats]
  • [Open WXA Internal Settings Page]
  • [SSH to WXA appliance]

Backend Server Communication:

  • Prevent communication with DELL Backend servers
  • Server Connection Timeout (sec): 30

Log Settings:

  • Exempt unfiltered events from global, category-level and group-level changes
  • [Restore Unfiltered Event Settings]
  • Main Log Process Reschedule Interval: 100
  • Log Entries
  • SMTP Read Timeout (sec): 10

IPv6 Settings:

  • Enable enforcement of IPv6 Ready Logo requirement

ICMP Settings:

  • Enable enforcement of Dropping Unreachable ICMP packet
  • Enable enforcement of Dropping Time Exceed ICMP packet

Debug Option:

  • Disable Pkt Monitor Application Detection

0 thoughts on “Sonicwall Address Object Zone Assignment Discovery”

    -->

Leave a Comment

Your email address will not be published. Required fields are marked *
